| All specifications products can be customized according to customer requirements | |

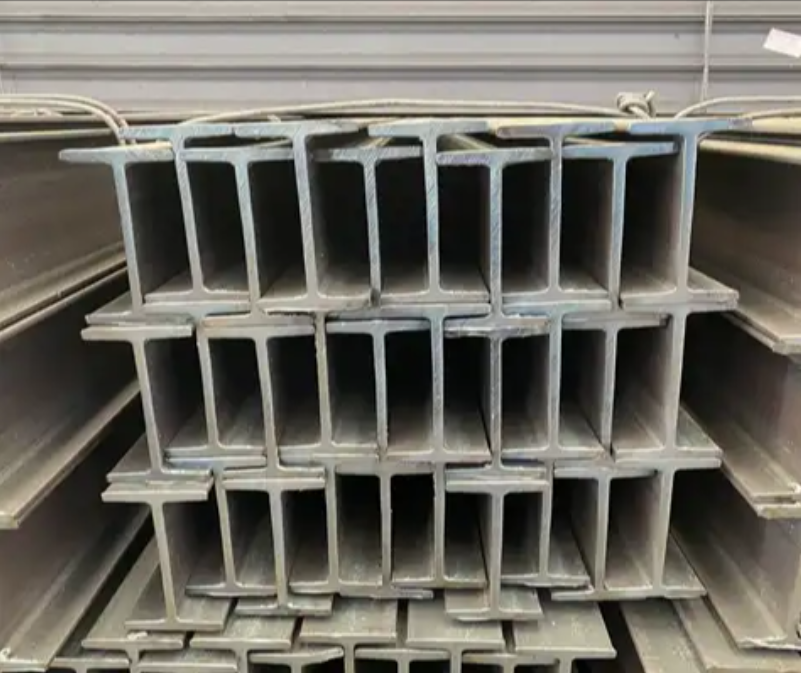

| H beam | |
| Size | 1.Web Width (H): 100-900mm 2.Flange Width (B): 100-300mm 3. Web Thickness (t1): 5-30mm 4. Flange Thickness (t2): 5-30mm |
| Length | 1m - 12m , or according to your requests. |
| Standard | GB ASTM, JIS, SUS, DIN, EN etc |
| Material | Q235B Q345B Q420C Q460C SS400 SS540 S235 S275 S355 A36 A572 G50 G60 |
| Technique | Hot rolled |
| Application | Construction structure |
| Price Item | FOB,CIF,DDU,FCA,EXW ,.etc |
| Packing | Export standard packing or according to customers' requirement |
| Supply Ability | Within10-15 workdays,25-30days when the quantity beyond 1000tons |
Product Description
1. MOQ: 1 Tons
2. Trade Terms: EXW, FOB, CIF, CNF, DDU, DDP, etc
3. Standard: GB, ASTM, JIS, AISI, DIN, BS.
4. Shipping: BY SEA
5. After-sales Service: Quality Objection Within 10 Days Since Receiving
6. Shape: H type/I type
Size
Size | Theoretical weight (kg/m) | Size | Theoretical weight (kg/m) | Size | Theoretical weight (kg/m) | |
100*50*5*7 | 9.54 | 294*302*12*12 | 85 | 482*300*11*15 | 115 | |
100*100*6*8 | 17.2 | 300*300*10*15 | 94.5 | 488*300*11*18 | 129 | |
125*60*6*8 | 13.3 | 300*305*15*15 | 106 | 496*199*9*14 | 79.5 | |
125*125*6.5*9 | 23.8 | 338*351*13*13 | 106 | 500*200*10*16 | 89.6 | |
148*100*6*9 | 21.4 | 340*250*9*14 | 79.7 | 582*300*12*17 | 137 | |
150*75*5*7 | 14.3 | 344*354*16*16 | 131 | 588*300*12*20 | 151 | |
150*150*7*10 | 31.9 | 346*174*6*9 | 41.8 | 596*199*10*15 | 95.1 | |
175*90*5*8 | 18.2 | 350*175*7*11 | 50 | 600*200*11*17 | 106 | |
175*175*7.5*11 | 40.3 | 344*348*10*16 | 115 | 700*300*13*24 | 185 | |
194*150*6*9 | 31.2 | 350*350*12*19 | 137 | |||
198*99*4.5*7 | 18.5 | 388*402*15*15 | 141 | |||
200*100*5.5*8 | 21.7 | 390*300*10*16 | 107 | |||
200*200*8*12 | 50.5 | 394*398*11*18 | 147 | |||
200*204*12*12 | 72.28 | 400*150*8*13 | 55.8 | |||
244*175*7*11 | 44.1 | 396*199*7*11 | 56.7 | |||
244*252*11*11 | 64.4 | 400*200*8*13 | 66 | |||
248*124*5*8 | 25.8 | 400*400*13*21 | 172 | |||
250*125*6*9 | 29.7 | 400*408*21*21 | 197 | |||
250*250*9*14 | 72.4 | 414*405*18*28 | 233 | |||
250*255*14*14 | 82.2 | 440*300*11*18 | 124 | |||
294*200*8*12 | 57.3 | 446*199*7*11 | 66.7 | |||
300*150*6.5*9 | 37.3 | 450*200*9-14 | 76.5 | |||
Main application of H-beam steel:
Various civil and industrial building structures; various long-span industrial plants and modern high-rise buildings, especially industrial plants in areas with frequent seismic activities and high-temperature working conditions; large bridges that require large bearing capacity, good section stability, and large spans.
We will test the goods before delivery, and also accept the quality inspection of a third party pointed by the customer.
Shanghai Changzeng Co., Ltd. is located in Shandong, China. The company mainly produces and sells carbon steel plates/coils/tubes/rods, galvanized steel coils PPGI/PPGL steel coils, stainless steel plates/plates/coils/tubes/rods, aluminum plates/plates/coils/foils/rods,wire rods, steel bars, profiles, and other steel products. We have sufficient steel inventory and can provide customers with various sizes and models of steel. Our sales and service network spans the world, ensuring that goods are delivered to customers in the shortest possible time through sea, rail, and air transportation. We have our own comprehensive quality control procedures that comply with various international standards; Strictly control the procurement, production, sales, warehousing, and transportation processes.
Our products are highly praised by customers both domestically and internationally, and enjoy a good reputation both domestically and internationally. We sincerely look forward to your visit, procurement, and establishing a long-term and good business relationship with you. We will not disappoint your expectations.
Packing & Delivery
Packing | 1.By steel strips in bundles |
2.By woven cloth with 7 slats | |
3.By woodenn pallet | |
4.Accorging to the requirements of customers |
Delivery | By sea | 1.In bulk ( based on 200tons) |
2.20ft container: 25tons (Length limted 5.8m MAX) | ||
3.40ft container:(Length limted 11.8m MAX) | ||
By air | UPS/DHL/FEDEX | |
By truck | as customer ruquests |
